CNLINKO Usb Male-male Circular Waterproof Usb Connector Ip68 Data Xlr Connector Panel Mount 4 Pin Female Micro Usb Female Socket

Name: CNLINKO Usb Malemale Circular Waterproof Usb Connector Ip68 Data Xlr Connector Panel Mount 4 Pin Female Micro Usb Female Socket
Brand: CNLINKO
Price: 5.76 USD

Buy cheap CNLINKO Usb Male-male Circular Waterproof Usb Connector Ip68 Data Xlr Connector Panel Mount 4 Pin Female Micro Usb Female Socket product

Place of Origin : Guangdong, China

Brand Name : CNLINKO

Model Number : YU-USB3-FS-MP-1M-001

MOQ : 10

Price : $5.76-6.72

Shape : ROUND

IP level : ip68

Type : usb

Application : Data

Gender : Male

Connector type : usb connector

Withstanding Voltage : 500V/AC

Durability : 5000 circles

Material : PBT,BLACK

Contact : Copper Alloy

Coupling ring : PA66,BLACK

Working Temperature : -40℃ to 80℃

Connecting mode : quickly bayonet connect

waterproof rate : ip67

Rated current : 1.5A

Contact Now

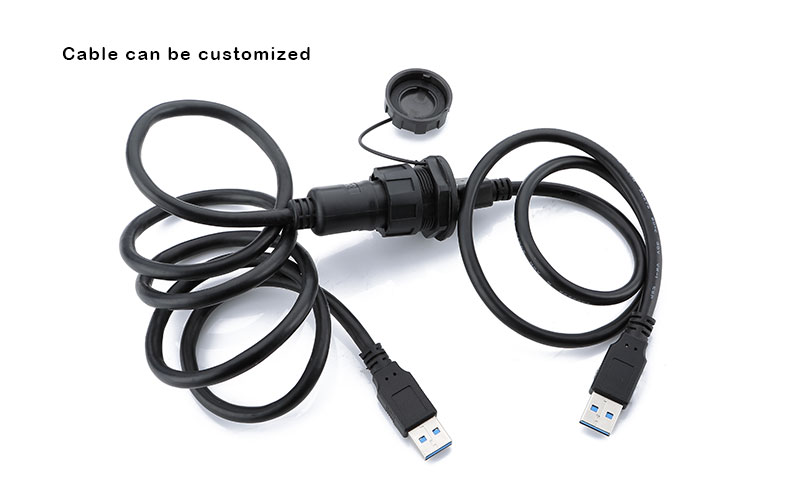

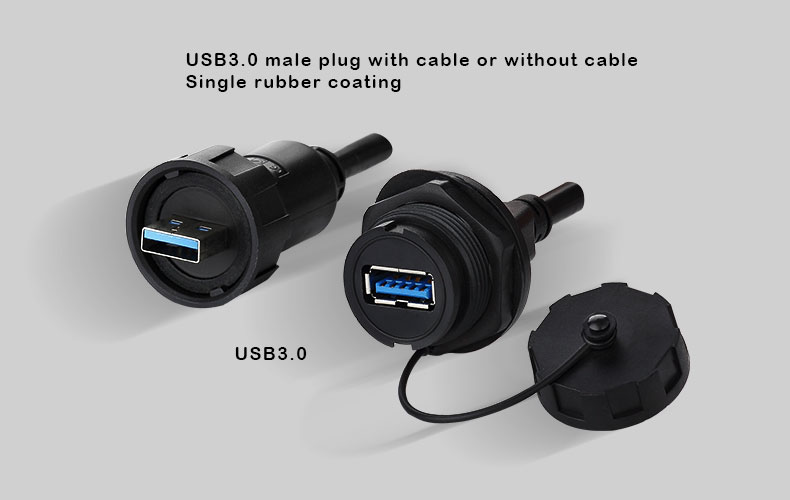

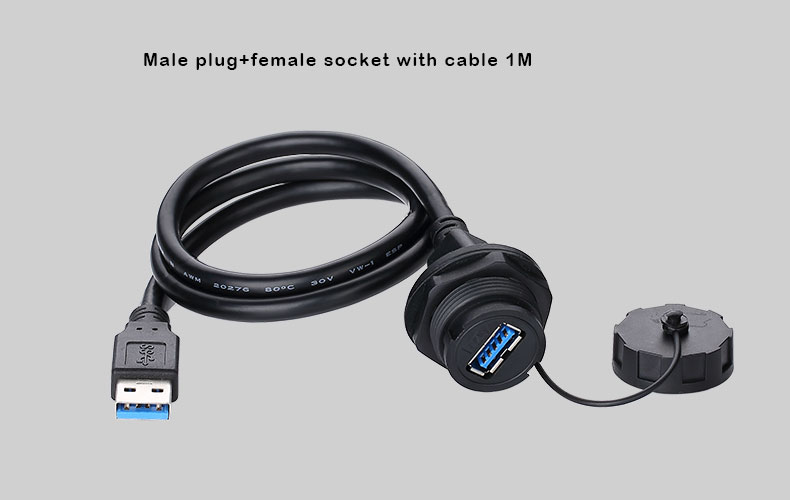

CNLINKO usb male-male circular waterproof usb connector

Product Description

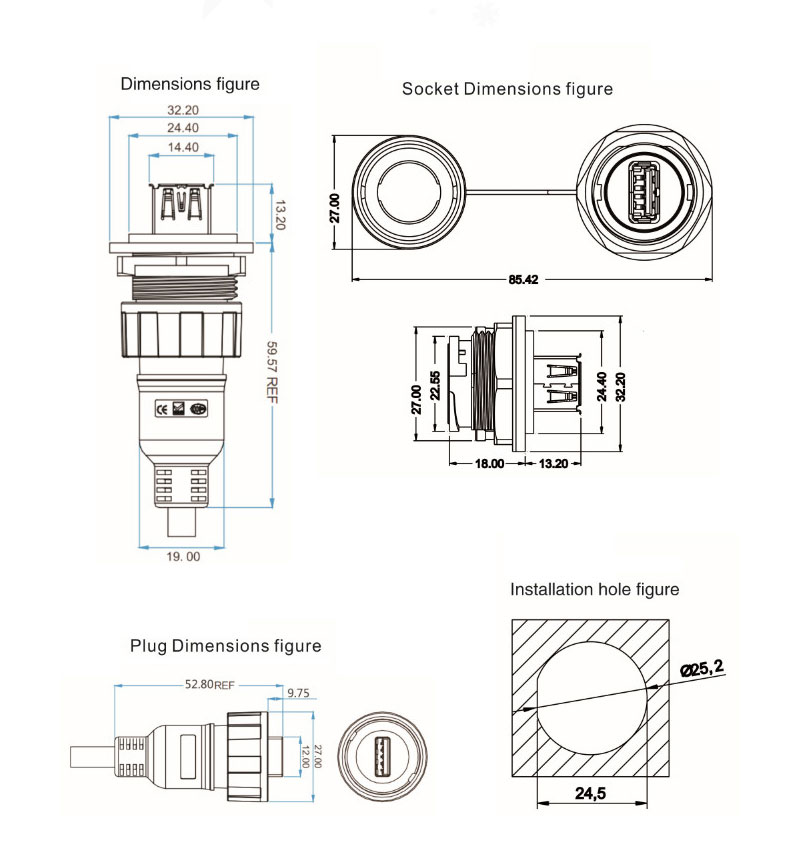

Specifications

Specifications
Connecting mode	Latching Lock connect
Protection level	IP65/IP67
Cable specification	0.15mm² ~ 0.2mm² /26~24AWG
Diameter range	Φ5.5mm ~Φ6.5mm
Contact diameter×Qty	9
Current rating(A)	1.5A
Temperature rise	/
Withstanding voltage(AC.V)1min	1000V
Contact resistance	<30mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Soldering
Prevent the combustion level	UL94-V0
Material
Insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated 4U)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
socket with cover

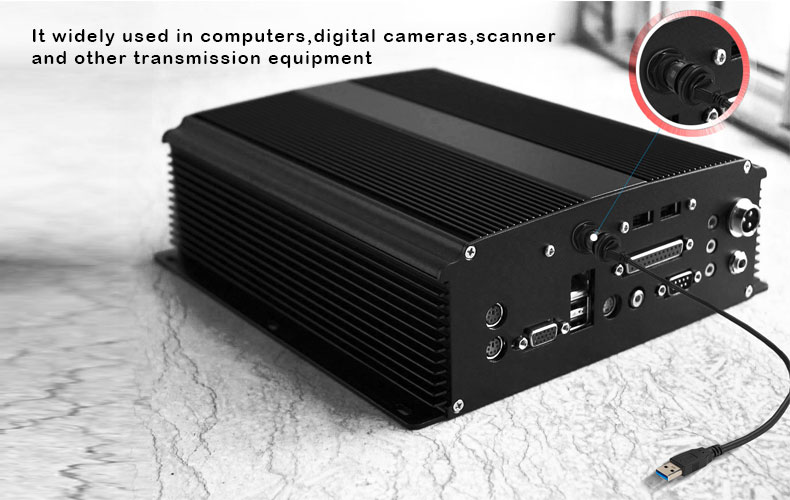

Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
