Cnlinko M12 IP68 Waterproof Quick Locking 6 Pin Plug and Socket Panel Mount Connector

Product Categories

Shenzhen Connectorworld Technologies Co.Ltd.

Contact Now

Name: Cnlinko M12 IP68 Waterproof Quick Locking 6 Pin Plug and Socket Panel Mount Connector
Brand: CNLINKO
Price: 4.50 USD

Place of Origin : Guangdong, China

Brand Name : CNLINKO

Model Number : LP-12-C06PE-02-001

Certification : CE,ROHS,CCC,ISO9001

MOQ : 2

Price : $4.50-5.50

Shape : ROUND

IP level : ip68

Type : Signal

Application : Industrial

Gender : male and female

Produce type : panel mount connector m12

Current rating(A) : 3A

Protection level : IP68

Shell & Insulated Parts : High Performance Engineer Plastic

Connecting mode : Quickly insert and pull out

Assembly : Soldering

Operating voltage : 200V

Contact pin : Copper alloy(gold-plated)

Package : Carton Box

Contact Now

Linko M12 IP67 Waterproof Quick locking 6 Pin Plug And Socket Panel mount connector

Product Description

Specifications

Specifications
Connecting mode	Latching Lock connect
Protection level	IP65/IP67
Cable specification	0.2~0.3mm² /24~22AWG
Diameter range	Φ3mm ~Φ6mm
Contact diameter×Qty	Φ0.8x6
Current rating(A)	5A
Temperature rise	/
Withstanding voltage(AC.V)1min	1500V
Contact resistance	<5mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Soldering
Prevent the combustion level	UL94-V0
Material
Insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated 4U)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics

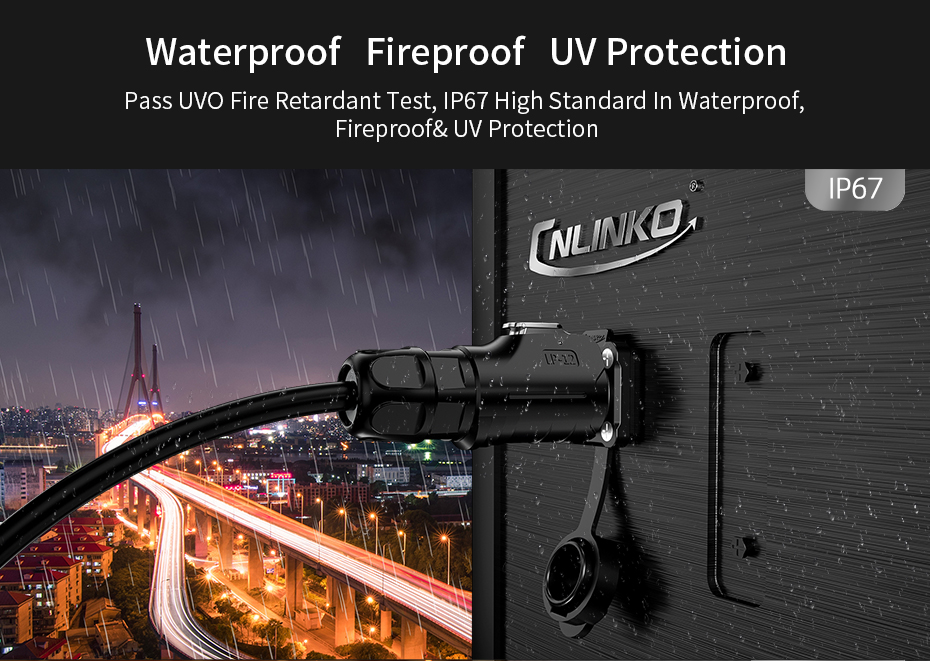

Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
