CNLINKO 3 Pin Waterproof Connection Cable Plug Electrical Swivel Xlr Connector 3 Pin Electric Terminals Connector

Name: CNLINKO 3 Pin Waterproof Connection Cable Plug Electrical Swivel Xlr Connector 3 Pin Electric Terminals Connector
Brand: CNLINKO
Price: 2.81 USD

Buy cheap CNLINKO 3 Pin Waterproof Connection Cable Plug Electrical Swivel Xlr Connector 3 Pin Electric Terminals Connector product

Place of Origin : Guangdong, China

Brand Name : CNLINKO

Model Number : YM-20-C03PE-02-001

Certification : CUL,UL,CE,ROHS,CCC,ISO9001

MOQ : 2

Price : $2.81-3.27

Type : Powercon

Application : Power

Gender : male and female

Produce type : plug and socket

Current rating(A) : 20A

Protection level : IP68

Shell & Insulated Parts : High Performance Engineer Plastic

Hardware Matel : Zinc Alloy (pearl hard chromium)

Item : cable connector

Assembly : Solder

Operating voltage : 500V

Contact pin : Copper alloy(gold-plated)

Contact Now

CNLINKO 3 Pin Waterproof Connection Cable Plug Electrical Swivel Connector

Product Description

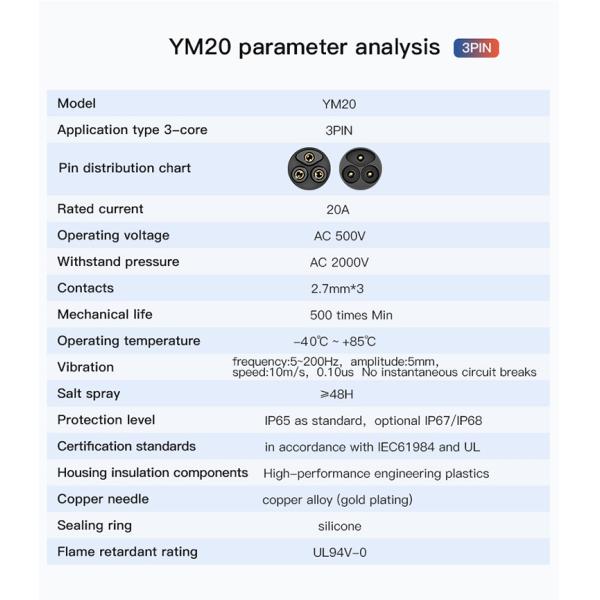

Specifications

Specifications
Connecting mode	Latching Lock connect
Protection level	IP65/IP67
Cable specification	2.5~4mm² /14-12AWG
Diameter range	Φ9.0mm ~Φ13.0mm
Contact diameter×Qty	Φ2.7×3
Current rating(A)	20A
Temperature rise	20A contact temperature below 30℃ 25A contact temperature below 40℃ 30A contact temperature below 50℃
Operating voltage(AC.V.rms)	500V
Withstanding voltage(AC.V)1min	2500V
Contact resistance	<1mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Soldering
Prevent the combustion level	UL94-V0
Material
shell & Insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated 4U)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance

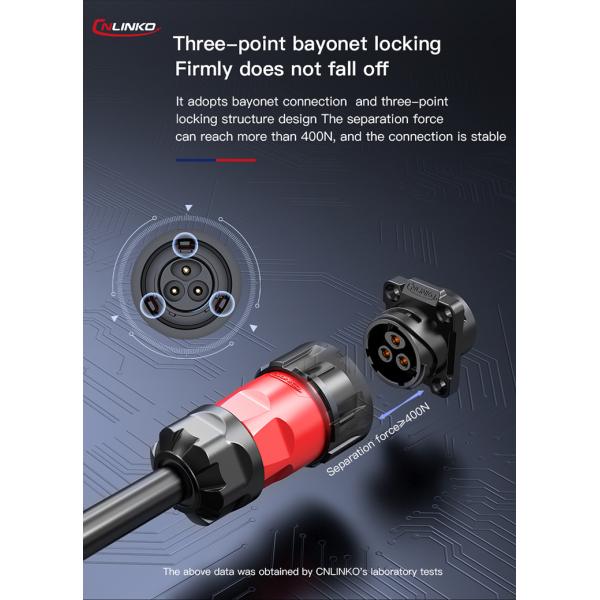

1/4 bayonet connect; socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery

Certifications
