CNLINKO LP24 RJ45 Waterproof Connector Internet LED Display 8P8C Connector Network CAT5E IP68 RJ45 Adapter Plug and Socket

Name: CNLINKO LP24 RJ45 Waterproof Connector Internet LED Display 8P8C Connector Network CAT5E IP68 RJ45 Adapter Plug and Socket
Brand: CNLINKO
Price: 8.46 USD

Buy cheap CNLINKO LP24 RJ45 Waterproof Connector Internet LED Display 8P8C Connector Network CAT5E IP68 RJ45 Adapter Plug and Socket product

Place of Origin : Guangdong, China

Brand Name : CNLINKO

Model Number : LP-24-RJ45-P01

Certification : CE,CCC,ROHS,ISO9001,TUV,IP67

MOQ : 2

Price : $8.46-9.46

Type : RJ45

Application : Audio & Video

Gender : male plug and female socket

Connector type : RJ45 waterproof connector

Apply for : LED display

Waterproof level : IP65

Contact Now

CNLINKO LP24 RJ45 Waterproof Connector Internet LED Display 8P8C Connector Network CAT5E IP67 RJ45 Adapter Plug and Socket

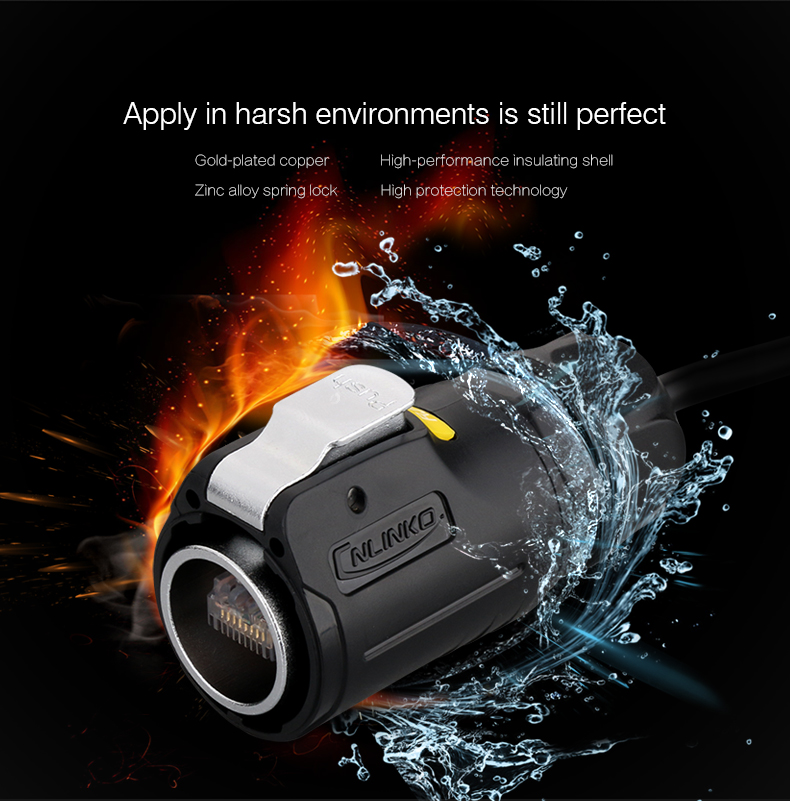

Features:

1. Low and stable contact resistance.
2. The seat is made of zinc alloy casing material, high frequency noise immunity and interference protection.

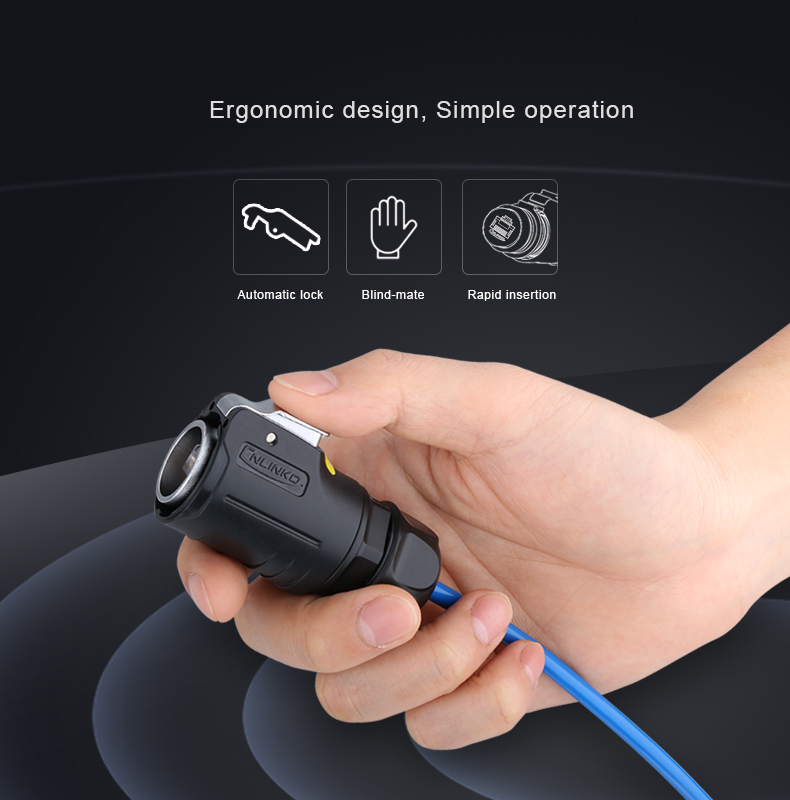

3. Spring snap-locking, easy to operate, safe and stable.
4. Unique patented direct-connected network port design to reduce PCB transfer and wire bonding.
5. The silicone wire clamp design is soft and extensible, effectively protecting the wire.
6. The product meets IP65/IP67 protection level when connected.

Product Description

Specifications

Specifications
Connecting mode	Latching Lock connect
Protection level	IP65/IP67
Cable specification	0.15-0.2mm² /26-24AWG
Diameter range	Φ5.5mm ~Φ7mm
Contact diameter×Qty	8PIN
Current rating(A)	1.5A
Temperature rise	/
Operating voltage(AC.V.rms)	/
Withstanding voltage(AC.V)1min	1000V
Contact resistance	<30mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Soldering
Prevent the combustion level	UL94-V0

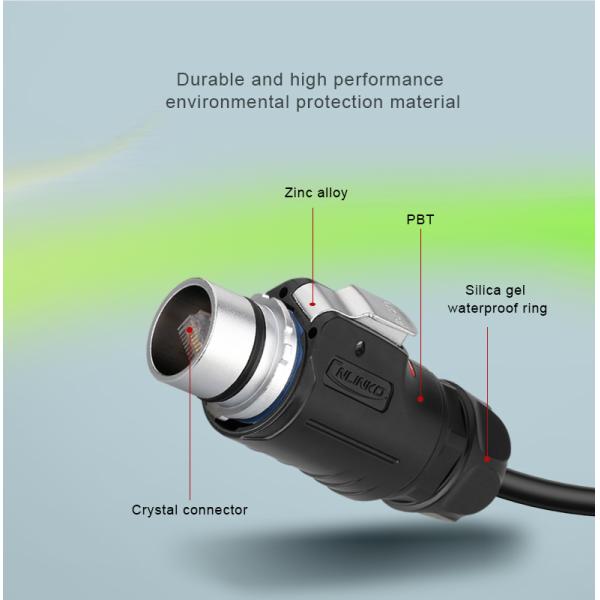

Material
shell & Insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated 4U)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery

Certifications

CNLINKO LP24 RJ45 Waterproof Connector Internet LED Display 8P8C Connector Network CAT5E IP68 RJ45 Adapter Plug and Socket Images
